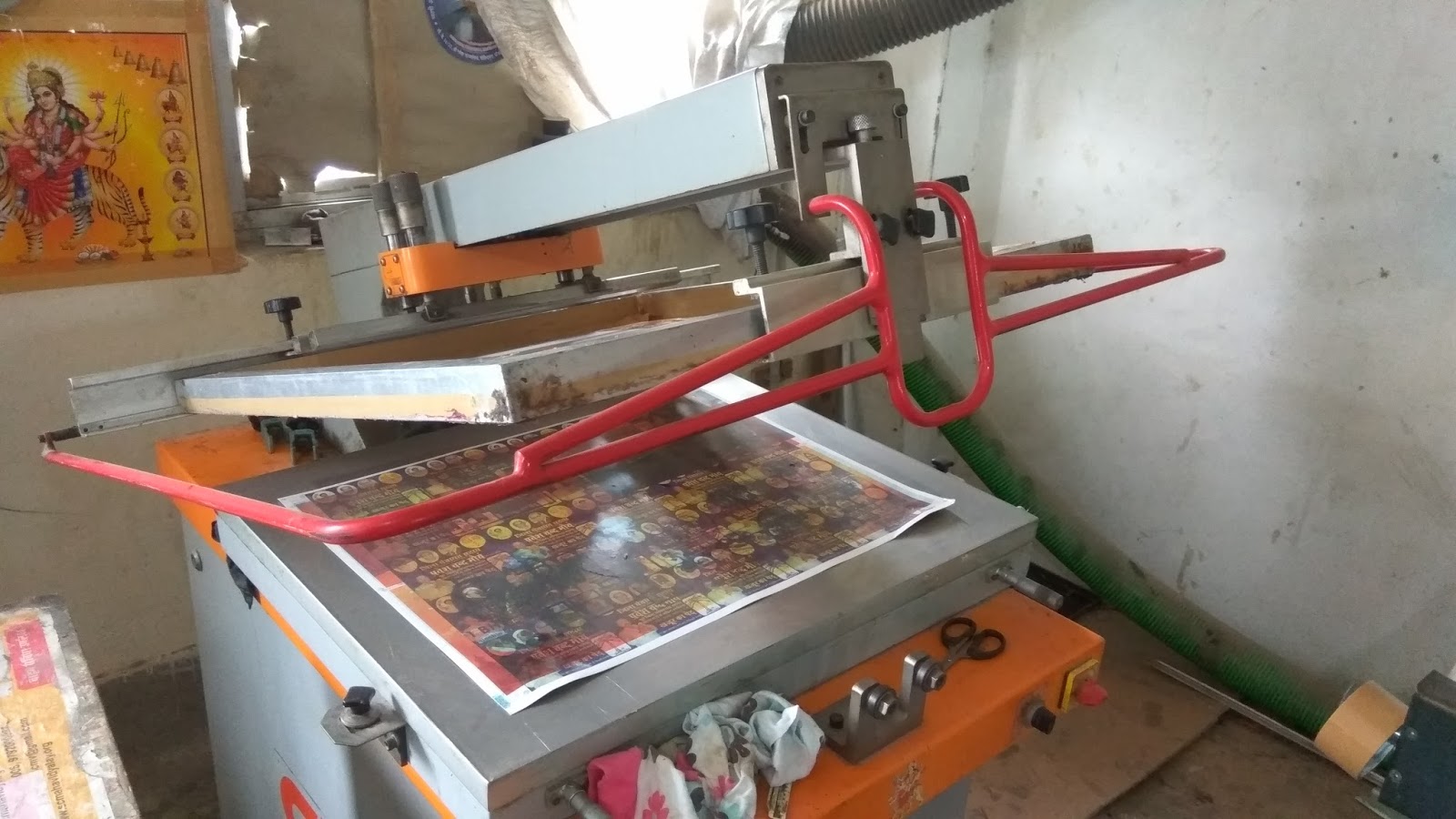

Print area 15” x 20”. Its easy to start and operate. Single Phase No compressor required.
| Description | Model: GF-1520 Nano-Paint |
|---|---|
| Max Print Area | 15” x 20” Inches (381 x 508 mm) |
| Vacuum Bed | 22.8” x 27.8” (580 x 707 mm) |
| Vacuum Bed Movement for Registration | ± 7 mm |
| creen Frame Size | 26” x 30” (660 x 762 mm) min & 30” x 36” (762 x 914 mm) max |
| Max Off-Contact | 10 mm |
| Max Substrate Thickness | 5 ~ 7 mm (Depends on mesh tension) |
| Screen Frame Thickness | 1.0” ~ 1.5” |
| Squeegee Holder | 16” (406 mm) min & 22” (560 mm) max |
| Flood Coater | 20” (508 mm) min & 30” (762 mm) max |
| Max Non-Stop Speed | 900 Impressions per hour |
| Power Consumption | 220V AC, sinle phase, 6 Amps, 50 Hz 1 HP (0.745 kW) |
| Dimensions (LxWxH) | 41” x 40” x 44” (1054 x 1005 x 1130 mm) |
| Weight | 270 kg |
